Product Description
È

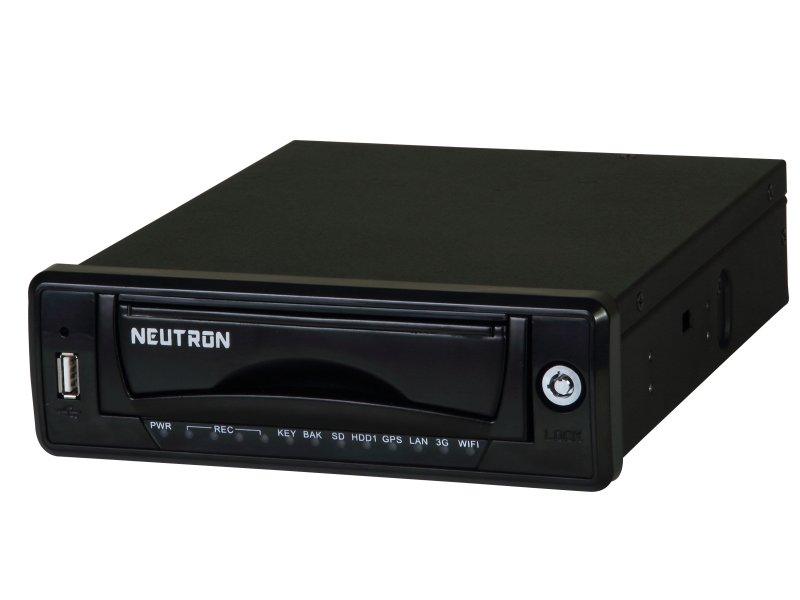

| Model | DVR0404ME-HE | |
| System | ||
| Main Processor | Embedded microprocessor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 4 channel | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |
| Audio | ||
| Input | 4 channel | |
| Output | 1 channel | |
| Two-way Talk | 1 channel Input, 1 channel Output | |
| Display | ||
| Interface | 1VGA, 2 TV | |
| Resolution | 1280×1024, 1280×720, 1024×768, 800×600 | |
| Display Split | 1/4 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264 / PCM | |
| Resolution | 960H(960×576/960×480) / D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |
| Record Rate | Main Stream | Full channel@960H/D1(1~25/30fps) |
| Sub Stream | CIF/QCIF(1~25/30fps) | |
| Bit Rate | 48~4096Kb/s | |
| Image Quality | 1~6 level(level 6 is the best, VBR effectively) | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection & Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Input | 7 channel | |
| Relay Output | 2 channel | |
| Playback & Backup | ||
| Sync Playback | 1/2/4 | |
| Search Mode | Time/Date, Alarm, Motion Detection & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100/1000M) | |
| Wireless Network | Built-in 3G/ Wi-Fi module(optional) | |
| GPS | Built-in high accurate GPS module(optional) | |
| Network Functions | TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 1 SATA port | |
| Memory Slot | 1 SD card | |
| Auxiliary Interface | ||
| USB | 2 ports (1 Rear), USB2.0 | |
| RS232 | 1 port, For PC communication & Keyboard | |
